COLNAGO C64 MAPEI - DISC FRAMESET

Product Type

C64 DISC FRAMESET FEATURES and SPECS The highly successful partnership between Mapei and Colnago of the '90s and early 2000s brought numerous professional wins, and this Colnago C64 Frameset d...

Ordered on demand

C64 DISC FRAMESET FEATURES and SPECS

The highly successful partnership between Mapei and Colnago of the '90s and early 2000s brought numerous professional wins, and this Colnago C64 Frameset displays the colourful cubed design in all its glory. The sloping geometry is racy and aggressive and the C64 has come about following two years of research and development to bring small but significant changes from its C60 predecessor. Completely hand-built in Italy, the carbon construction has a UD (unidirectional) finish that shaves around 200 grams from the weight, and the fork has been completely redesigned to improve comfort, stiffness and ride quality.

Across the frame, the head tube is now thinner, with a shape that increases side stiffness. The downtube is narrower in the lower part to better match the rear triangle, and the bottle cage area is recessed, both improving torsional stiffness and keeping your bidon tucked away out of the wind. With a one-piece seat tube and seat lug, weight is further cut, and the integrated seat clamp keeps things sleek. Asymmetrical chainstays improve power transfer and the dropouts are fully integrated. This frameset is compatible with both mechanical and electronic groupsets and cables are routed internally. With a tyre clearance of 28mm you can benefit from faster rolling and a smoother ride.

FEATURES

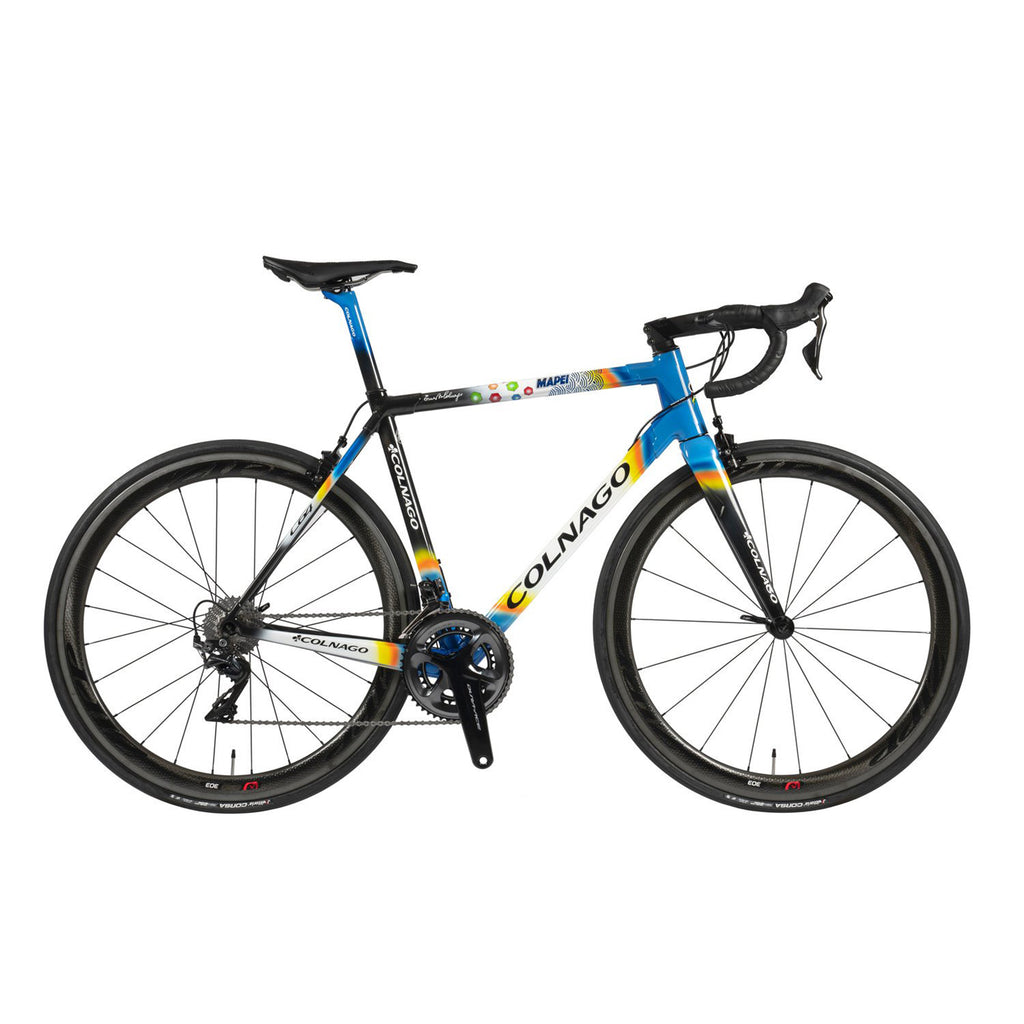

Colnago C64 carbon frameset in Mapei colours
Redesigned carbon fork with an external rib shape and internal rib for improved comfort and ride quality
UD carbon finish
Designed for direct mount brakes
Tyre clearance: 28mm
Compatible with both mechanical and electronic groupsets
Internal cable routing

Bottom Bracket Type Threadfit82.5 – BB86 Required
Frame Material High Modulus Carbon
Fork Colnago C64, 1 1/4″-1 1/8″, Internal Cable Routing
Headset Colnago Integrated, 1/8″ to 1 1/4″
Seatpost Colnago C64 Carbon
Front Derailleur Type Braze-On Required

*Specifications are subject to change.

C64 DISC FRAMESET GEOMETRY / SIZE CHART

Size	Seat Tube (c-c)	Seat Tube (c-t)	Top Tube Length	Head Tube Length	Chain Stay Length	Seat Tube Angle	Head Tube Angle	Stand Over Height	Wheel Size	Stack	Reach
42	420	532	510	115	405	75.49	70.8	–	700c	515	377
45	450	540	520	118	405	75.14	71.15	–	700c	522	381
48	480	548	530	122	408	74.58	71.52	–	700c	528	383
50	500	570	540	141	410	74.00	71.62	–	700c	548	383
52	520	589	550	158	410	73.57	71.92	–	700c	565	384
54	540	610	565	175	412	72.83	72.49	–	700c	583	385
56	560	619	582	182	414	72.75	72.88	–	700c	591	398
58	580	637	594	199	414	72.75	73.12	–	700c	608	405
60	600	657	605	219	414	72.75	73.3	–	700c	628	410
