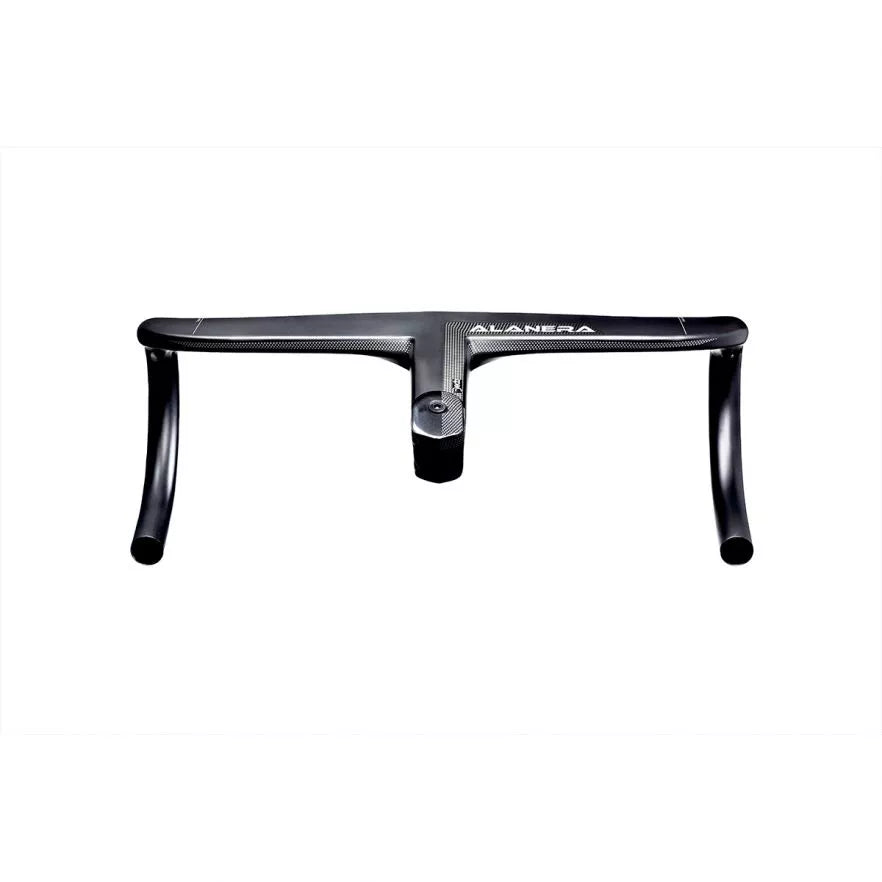

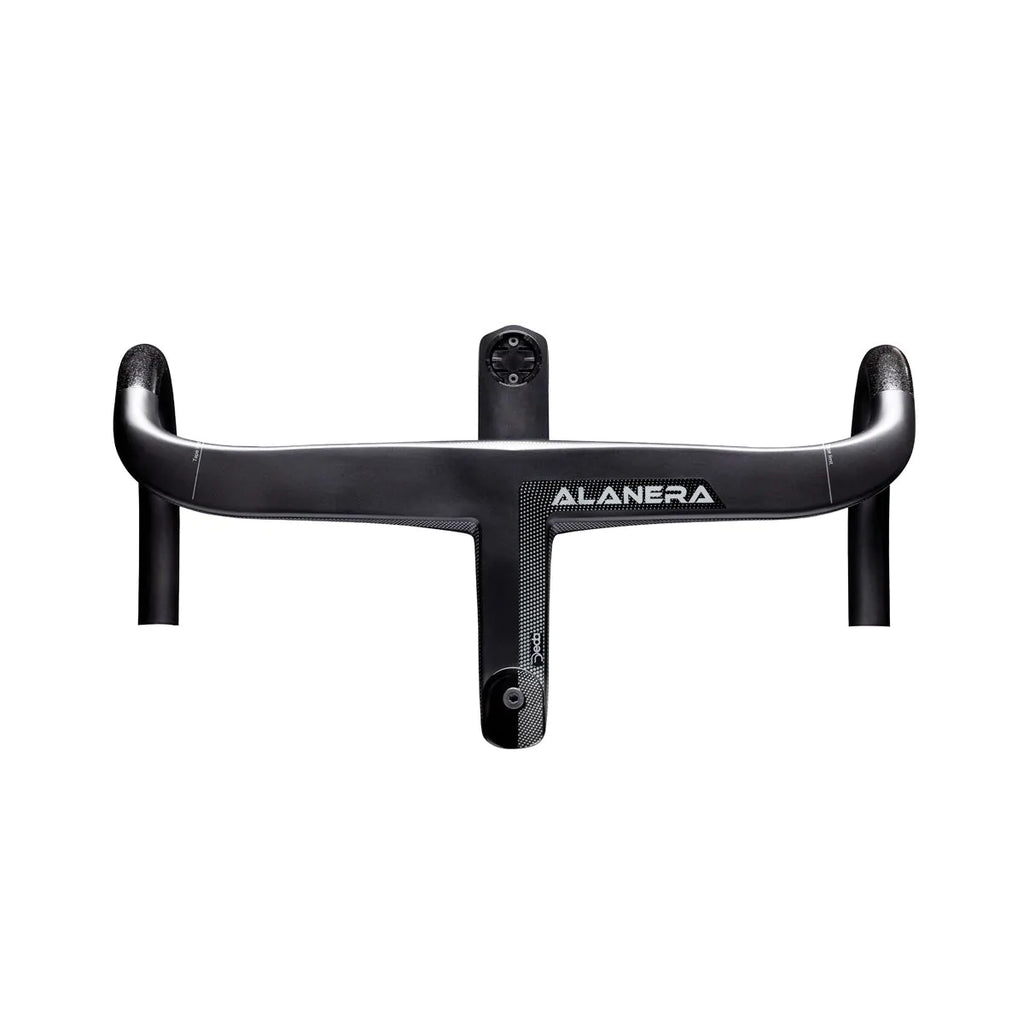

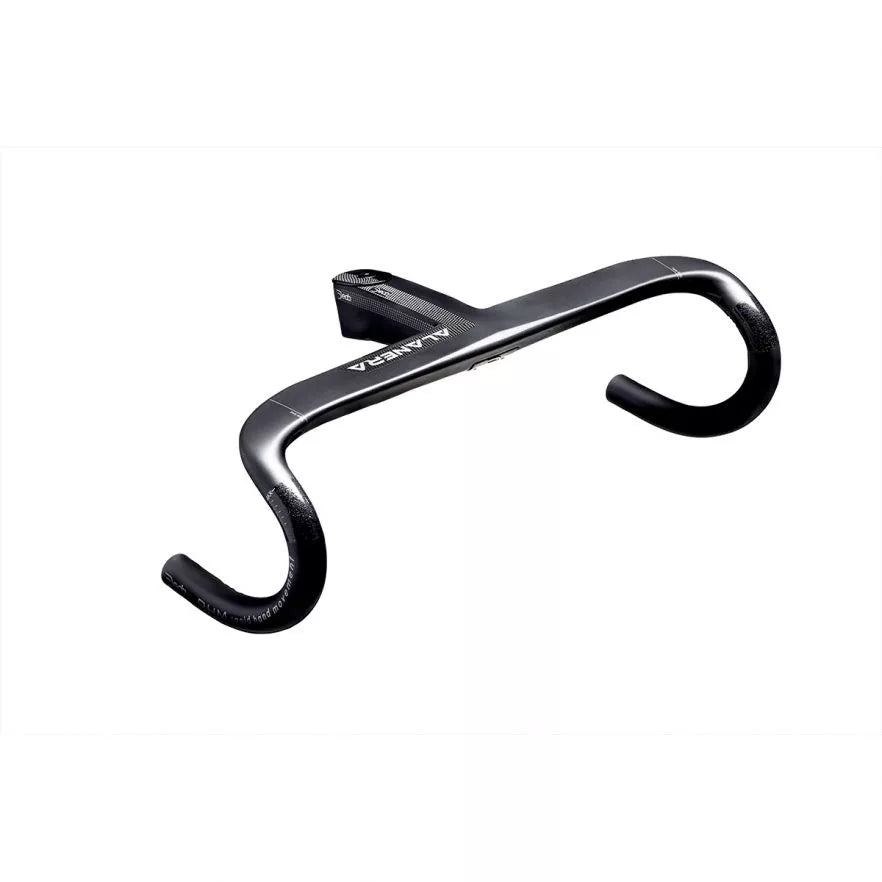

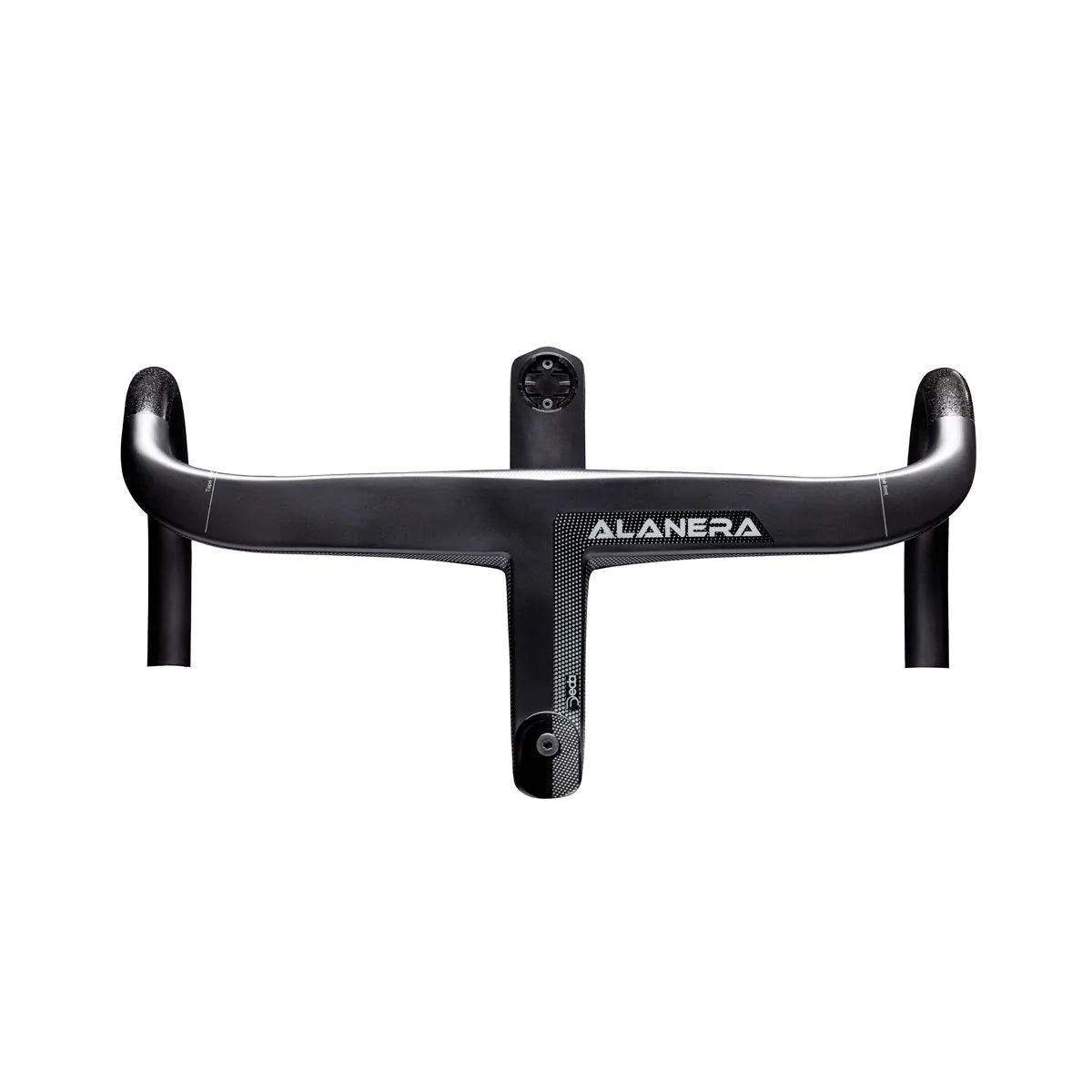

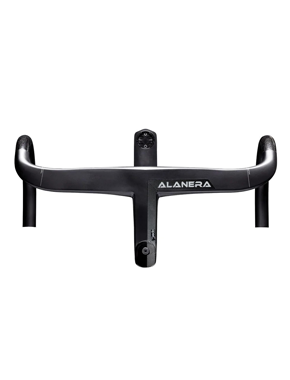

Developed to be aero for full cable internal routing, the optimized design provides perfect bike integration.
DEDA Alanera features the full internal cable routing when mounted on D-shape forks or DCR compatible frames. Special headset spacers provide the channels for the housing cables. Spacers are designed with slits that let them pull open, be easily added or removed to provide the correct fit without having to remove all cables. The RHM shape guarantees a very compact reach and drop for a fast change from the shifters to the drops. Available in 11 different size combinations.
Note: Compatible with full internal cable routing (2 brake cables & electric shifting wire) and external cable routing.
Shape: RHM (Rapid Hand Movement)
Material: UD full carbon construction
Fork steerer: 1 1/8" (28.6mm)
Reach: 75mm | Drop: 130mm
Finish: Polish on Black (POB)
Sizes 42 cm: 90mm (ALADCRPOB090X42), 100mm (ALADCRPOB100X42), 110mm (ALADCRPOB110X42), 120mm (ALADCRPOB120X42), 130mm (ALADCRPOB130X42)
Sizes 44 cm: 100mm (ALADCRPOB100X44), 110mm (ALADCRPOB110X44), 120mm (ALADCRPOB120X44), 130mm (ALADCRPOB130X44)
Sizes 46 cm: 120mm (ALADCRPOB120X46), 130mm (ALADCRPOB130X46)
Measurement: handlebar width: outside-outside x stem length
Weight: 350g (based on a 110×42 size)
Included accessories: aero topcap, headset spacers and topcover for headtube 56mm & 46mm, Garmin® bike mount for 500&800 series
