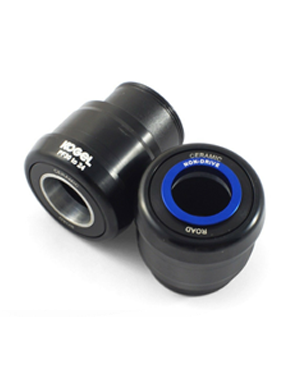

KOGEL BEARINGS Bottom Bracket PF30-24 Cross Ceramic
The people at Kogel Bearings believe that high quality ceramic bearings are the measure of things for ball bearings in bicycles.
Silicon nitride has a number of material properties that make it almost perfect for bicycle storage.
The material is extremely hard, wear resistant, can be formed into perfectly round balls with minimal tolerances and can be polished smoother than any metal. In addition, the material does not rust or corrode in any other way.
The bearing rings are made of hardened steel and polished. This is necessary to create a perfect, smooth running surface for the ceramic balls.
Kogel Bearings offers two different types of gaskets for different applications: Road Seals, a minimal contact gasket designed to run as lightly as possible.
The Cross Seals, on the other hand, are designed to provide extra protection against external weather: dust, water and mud. It is great for CX, MTB or road bike use when it comes to maximum life.
Kogel Bearings is aware that ceramic bearings have a bad reputation for durability. This is usually due to the suboptimal quality of the stock being sold as a high.
A bearing needs to be balanced and designed: the hardness of the balls requires to be combined with equally smooth and hard bearing tracks. The bearing cage, seals and greases must be coordinated to work perfectly.
If one of the components does not fit optimally, it reduces the performance of the entire bearing. The result is increased resistance, shortened life or even total failure of the bearing.
If something breaks in the first year, Kogel will repair or replace the product without many questions about jobs.
After the first year, a service must be provided. If the bearing is serviced by a qualified mechanic, ie a cleaning, relubrication and replacement of the seals,
the warranty is extended for another year.
With this bottom bracket fit cranks with 24 mm shaft diameter or GXP standard in frame with PF30 bottom bracket shell. The reduction sleeves required for SRAM GXP are included in the bottom bracket.
This bottom bracket is available with 2 different press-in depths. Deep (26 mm) or Shallow (14 mm). The Shallow bottom bracket is designed for steel or titanium frames with internal cable routing or Di2 routing so as not to obscure the openings of the chain stays unnecessarily.
Sealing: Cross Seals
intended use : Road, CX, Gravel, MTB
Material bearing shell: aluminum
Material bearing: ceramic hybrid
Inner bearing type: PressFit
Inner bearing housing Width: 68 mm or 73 mm
Crank shaft diameter: 24 mm
Inner bearing housing frame: 46 mm
Compatibility crank: 24 mm, SRAM GXP
Stock: Kogel Bearings
Tool holder: PressFit Tool
Weight: about 100g
Scope of supply: 1x KOGEL BEARINGS bottom bracket PF30-24 cross ceramic
