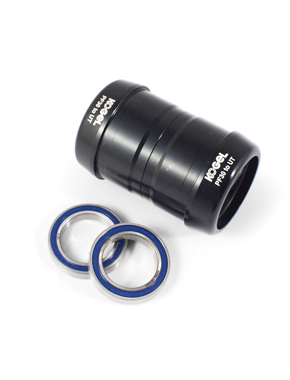

KOGEL BEARINGS Bottom Bracket PF30 Campagnolo Ultra Torque | Cross Seals ceramic 25 mm shaft
The people at Kogel Bearings believe that high quality ceramic bearings are the measure of things for ball bearings in bicycles.
Silicon nitride has a number of material properties that make it almost perfect for bicycle storage.
The material is extremely hard, wear resistant, can be formed into perfectly round balls with minimal tolerances and can be polished smoother than any metal. In addition, the material does not rust or corrode in any other way.
The bearing rings are made of hardened steel and polished. This is necessary to create a perfect, smooth running surface for the ceramic balls.
Kogel Bearings offers two different types of gaskets for different applications: Road Seals, a minimal contact gasket designed to run as lightly as possible.
The Cross Seals, on the other hand, are designed to provide extra protection against external weather: dust, water and mud. It is great for CX, MTB or road bike use when it comes to maximum life.
Kogel Bearings is aware that ceramic bearings have a bad reputation for durability. This is usually due to the suboptimal quality of the stock being sold as a high.
A bearing needs to be balanced and designed: the hardness of the balls requires to be combined with equally smooth and hard bearing tracks. The bearing cage, seals and greases must be coordinated to work perfectly.
If one of the components does not fit optimally, it reduces the performance of the entire bearing. The result is increased resistance, shortened life or even total failure of the bearing.
If something breaks in the first year, Kogel will repair or replace the product without many questions about jobs.
After the first year, a service must be provided. If the bearing is serviced by a qualified mechanic, ie a cleaning, relubrication and replacement of the seals,
the warranty is extended for another year.
This bottom bracket allows the installation of Campagnolo cranks with 25 mm shaft in frames that have a PF30 bottom bracket shell. The outward displacement of the bearings significantly increases the system rigidity compared to solutions with many spacers.
intended use : Road, CX, Gravel, MTB
Material bearing shell: aluminum
Material bearing: ceramic hybrid
Inner bearing type: PressFit
Inner bearing housing width: 68 mm
Crank shaft diameter: 30 mm
Inner bearing housing frame: 46 mm
Compatibility crank: 25 mm, Campagnolo Ultra Torque
Stock: Kogel Bearings
Tool holder: PressFit Tool
Weight: about 100g
Scope of supply: 1x KOGEL BEARINGS bottom bracket PF30 Campagnolo Ultra Torque | Road seals ceramic 25 mm shaft
Bottom bracket overview Install Bottom Brackets Like a Boss
Installation manual Service manual
