KOGEL BEARINGS bottom bracket PF30A | Road Seals ceramic 24 mm shaft
The people at Kogel Bearings believe that high quality ceramic bearings are the measure of things for ball bearings in bicycles.
Silicon nitride has a number of material properties that make it almost perfect for bicycle storage.
The material is extremely hard, wear resistant, can be formed into perfectly round balls with minimal tolerances and can be polished smoother than any metal. In addition, the material does not rust or corrode in any other way.
The bearing rings are made of hardened steel and polished. This is necessary to create a perfect, smooth running surface for the ceramic balls.
Kogel Bearings offers two different gasket types for different applications: Road Seals, a minimal contact gasket designed to run as lightly as possible.
The Cross Seals, on the other hand, are designed to provide extra protection against external weather: dust, water and mud. It is great for CX, MTB or road bike use when it comes to maximum life.
Kogel Bearings is aware that ceramic bearings have a bad reputation for durability. This is usually due to the suboptimal quality of the stock being sold as a high.
A bearing needs to be balanced and designed: the hardness of the balls requires to be combined with equally smooth and hard bearing tracks. The bearing cage, seals and greases must be coordinated to work perfectly.
If one of the components does not fit optimally, it reduces the performance of the entire bearing. The result is increased resistance, shortened life or even total failure of the bearing.
If something breaks down in the first year, Kogel will repair or replace the product without many questions about jobs.
After the first year, a service must be provided. If the bearing is serviced by a qualified mechanic, ie a cleaning, relubrication and replacement of the seals,
the warranty is extended for another year.
With this bottom bracket fit cranks with 24 mm shaft, Shimano, rotor or SRAM GXP in frame with PF30A standard. PF30A is a standard used on Cannondale carbon frames: SuperSix EVO, FSI and Slice.
Sealing: Road Seals
intended use : Road
Material bearing shell: aluminum
Material bearing: ceramic hybrid
Inner bearing type: PressFit
Inner bearing housing width: 73 mm
Crank shaft diameter: 24 mm, SRAM GXP (24 mm - 22 mm)
Inner bearing housing frame: 46 mm
Compatibility crank: 24 mm shaft, GXP
Stock: Kogel Bearings
Tool holder: PressFit Tool

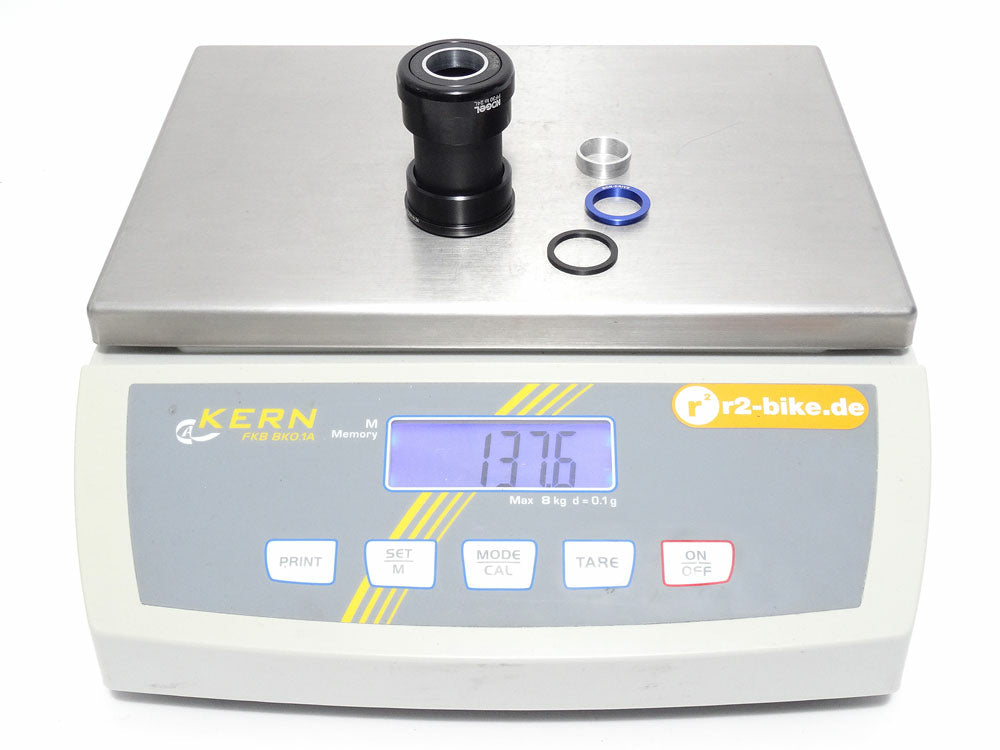

Weight: 138g (self weighed)

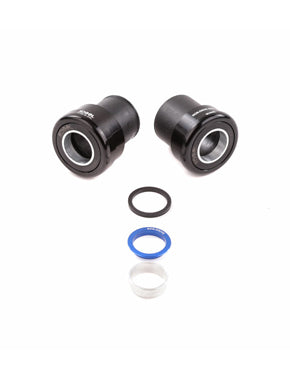

Scope of supply: 1x KOGEL BEARINGS bottom bracket PF30A Road ceramic
