COLNAGO G5-X 2027 - SRAM RED XPLR - COMPLETE GRAVEL BIKE

COMPLETE BIKE • FIXED FACTORY-SPEC BUILD • PAINTED

The flagship G5-X complete build. SRAM RED XPLR electronic shifting and Zipp 303 XPLR SW carbon wheels sit at the heart of a gravel bike that feels as considered on a long adventure as it does on a start line. At The Wheelhouse, this listing is for the complete Colnago G5-X with SRAM RED XPLR AXS 1x13 and Zipp 303 XPLR SW wheels—not a frameset.

Colnago G5-X: gravel, without the limits

Some rides start on pavement and end somewhere you did not plan. The G5-X is an entirely new monocoque carbon gravel platform, not simply a revision of the G4-X. It pairs responsive carbon construction with revised gravel geometry, room for nominal tires up to 53 mm and practical carrying options for the miles ahead. Internal down-tube storage keeps small essentials within the frame, while six mounting locations accommodate bottles and cargo for longer days.

A threaded BSA 68 mm bottom bracket and UDH-compatible rear end are thoughtful details for ownership. The included carbon seatpost uses a round 27.2 mm section with -15 mm offset. A compatible dropper post is a possible future option; it is not included in this complete build.

Included complete-bike components

• Frame and fork: Colnago G5-X monocoque carbon frame and G5-X carbon disc-brake fork with integrated cable routing.
• Drivetrain: SRAM RED XPLR AXS 1x13 electronic gravel drivetrain, single 40T chainring and 10–46T 13-speed cassette.
• Brakes: SRAM RED hydraulic disc brakes; 160 mm front and rear rotors.
• Wheelset: Zipp 303 XPLR SW — 54 mm-deep, 32 mm-internal hookless carbon rims; Zipp ZR1 disc hubs with Centerlock rotor interfaces and 66 points of engagement.
• Tires: Goodyear XPLR Inter TLR 700x50.
• Cockpit: Colnago CC.01 Wide integrated cockpit with fully integrated cable routing.
• Saddle: Selle Italia Novus.
• Seatpost: Colnago carbon, 27.2 mm round, -15 mm offset.
• Bar tape: Colnago Grip Black.
• Axle standards: 12x100 mm front and 12x142 mm rear.

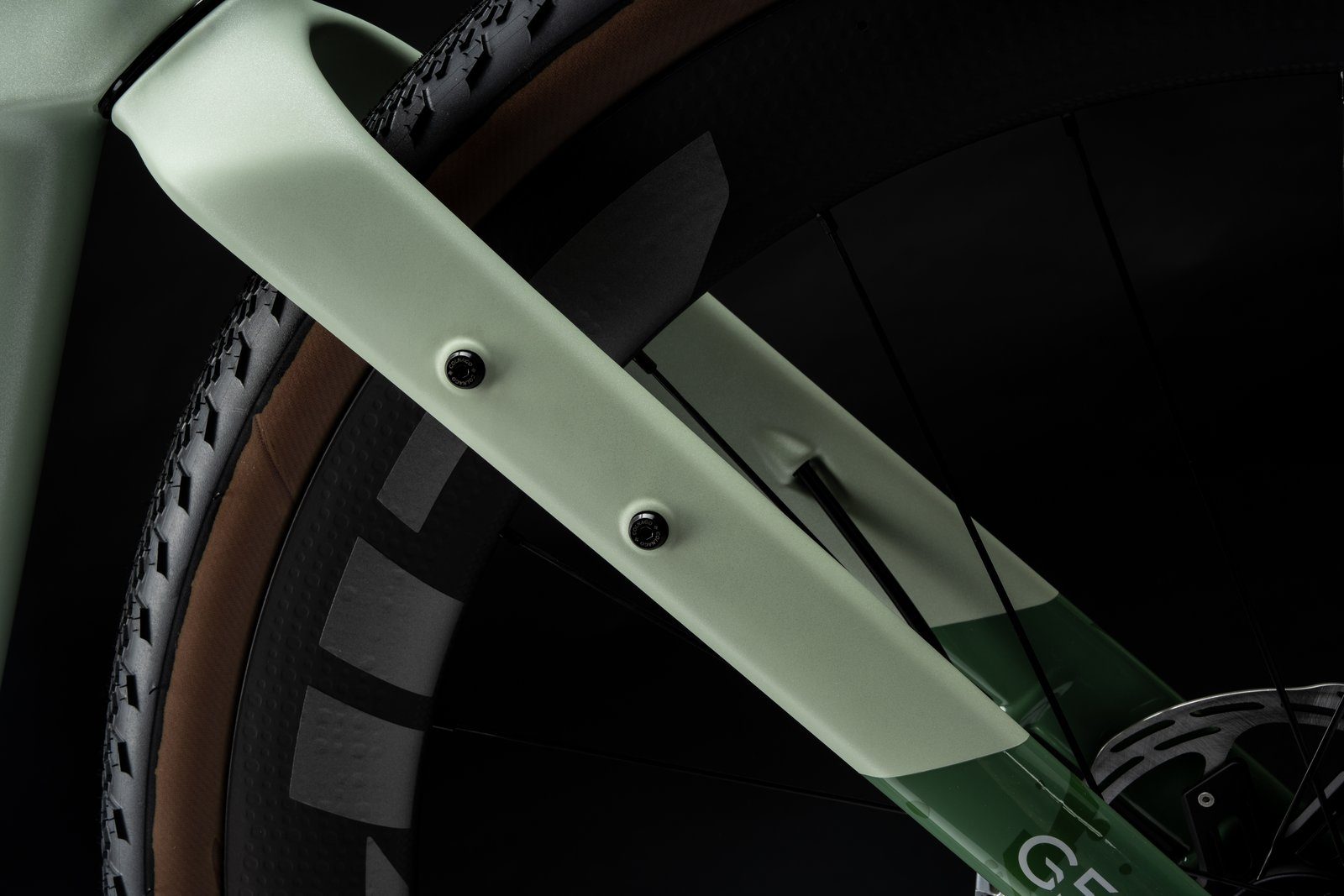

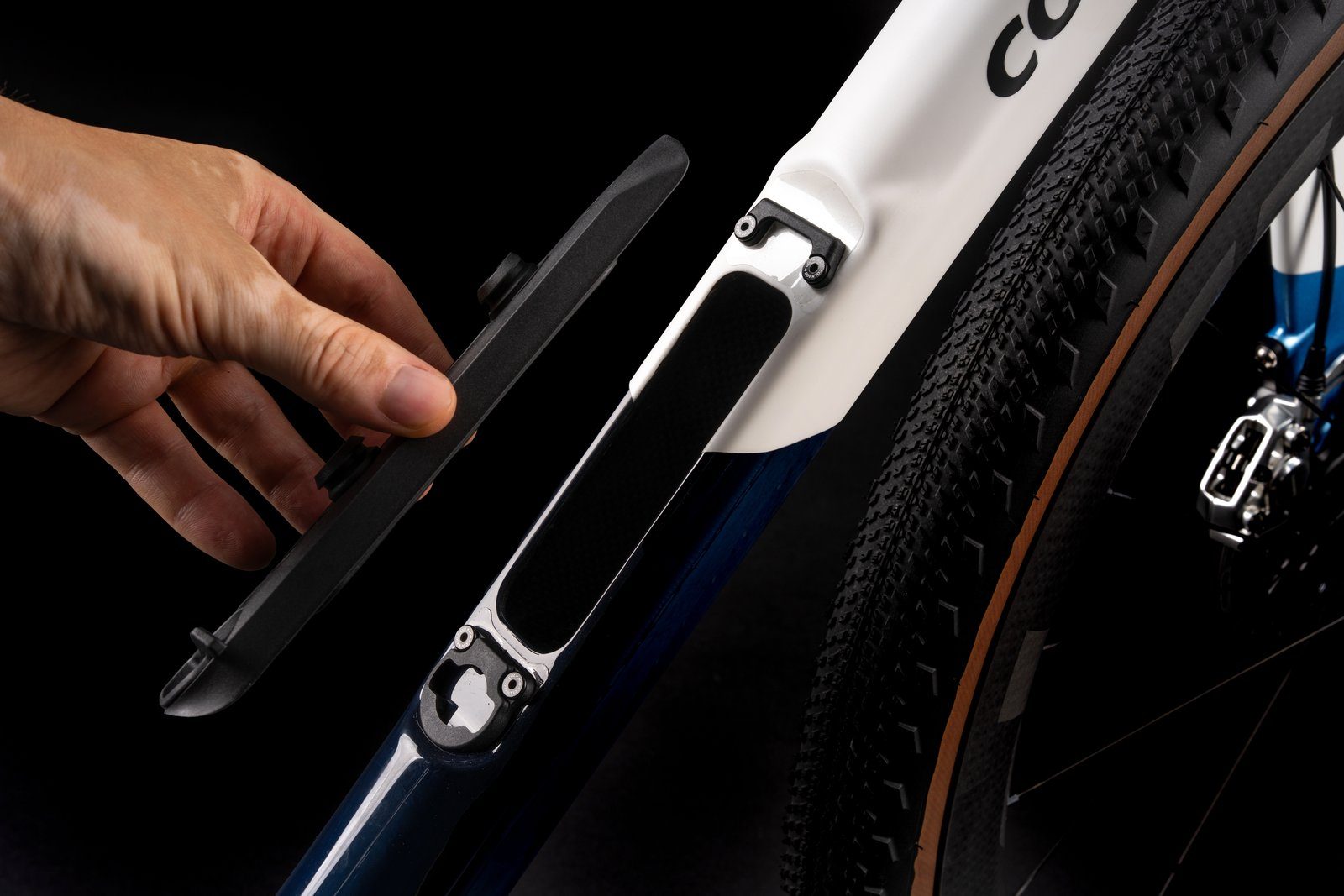

• Storage and mounts: internal down-tube compartment; two conventional bottle locations, one under the down tube, one on the top tube and two on the fork. Three FIDLOCK Twistlock mounts are included; storage bag and repair kit are not included.

Two painted colours. Five stock sizes.

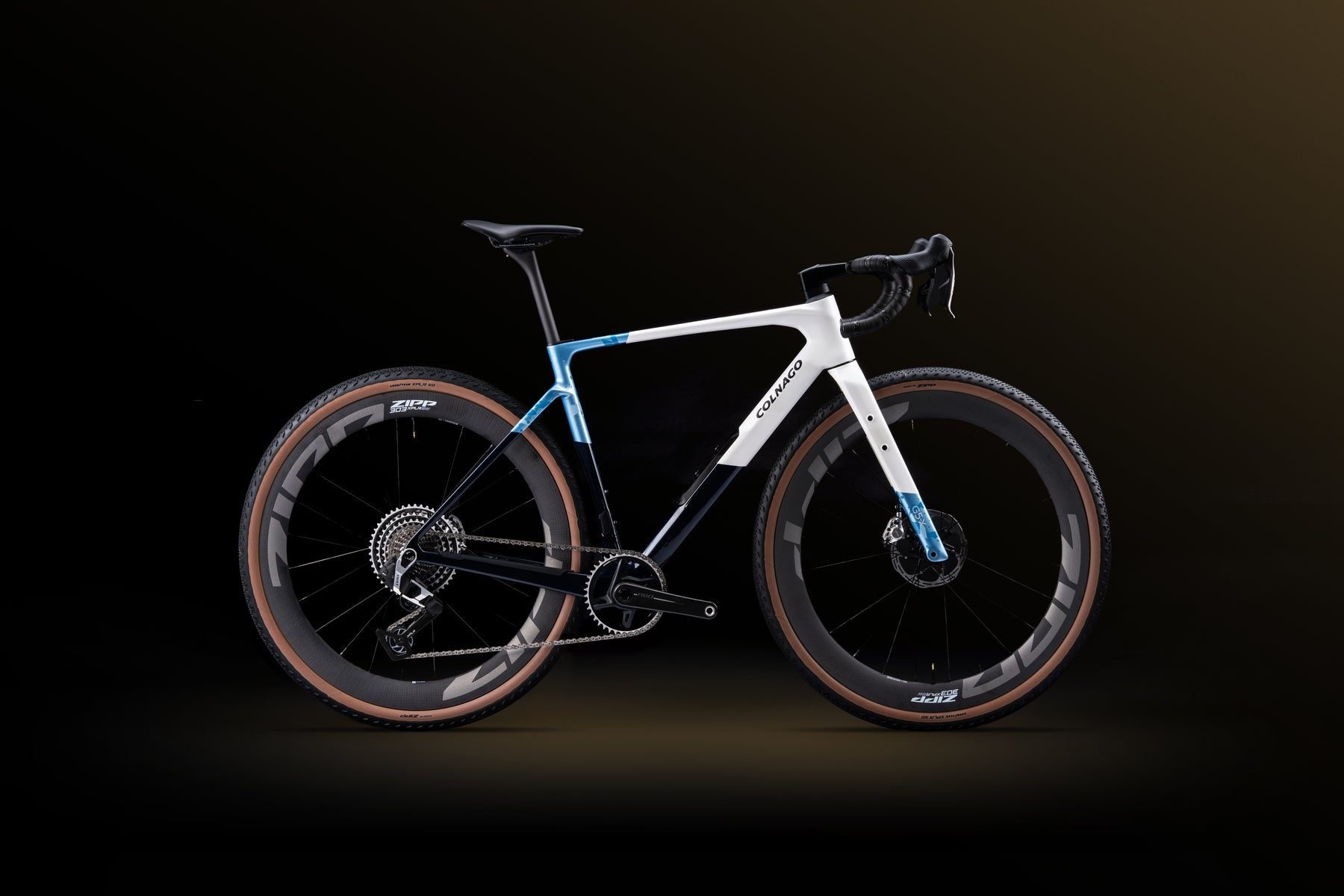

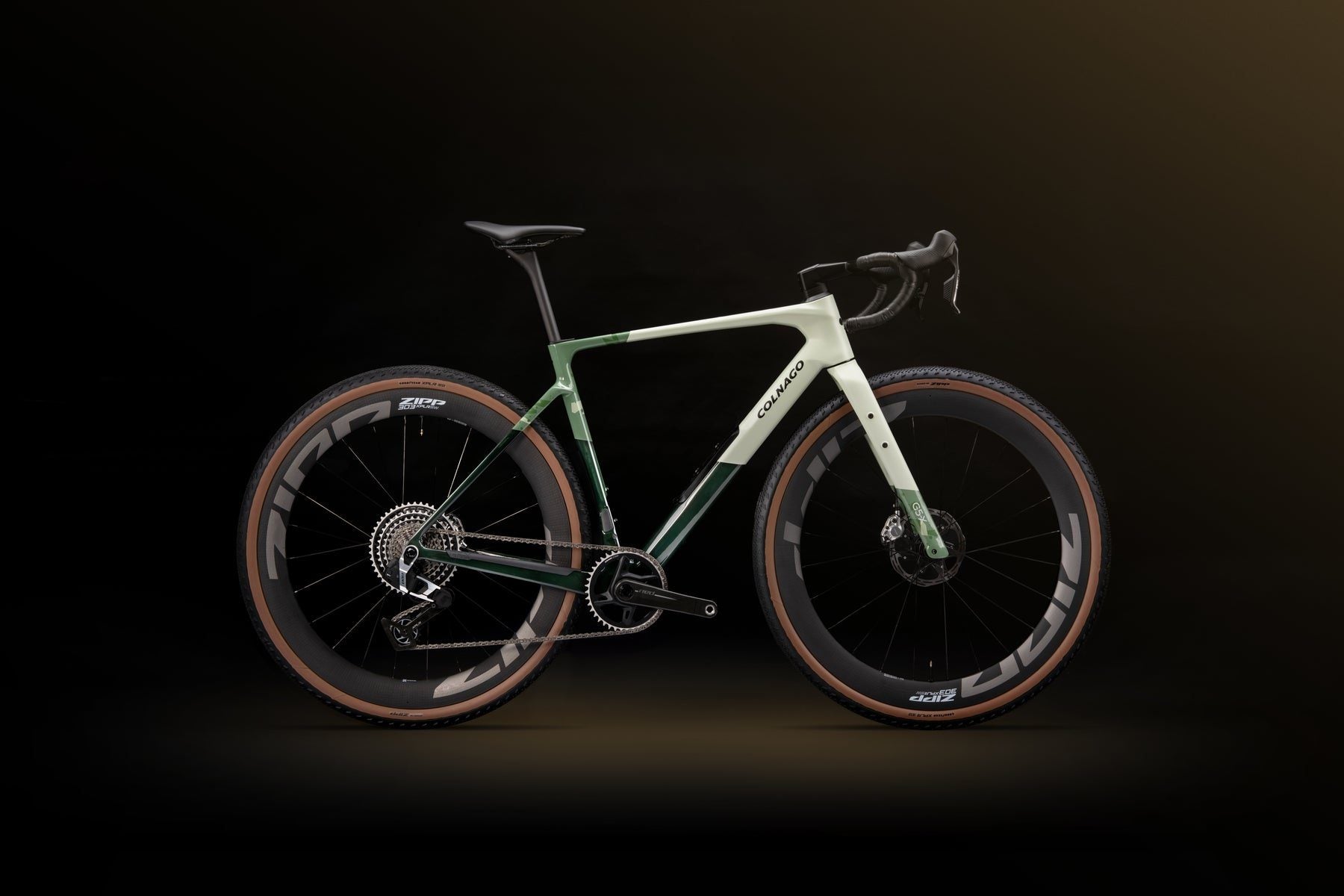

PAINTED: G501 — Carbon Green / White or G502 — Carbon Blue / White. These are the only two colour choices offered for this listing; there is no raw or custom-paint option.

Select Colnago size 450 (Extra Small), 480 (Small), 510 (Medium), 540 (Large), or 570 (Extra Large). These are Colnago’s size codes, not conventional seat-tube lengths in centimetres. The frame is supplied in standard sizes, not made to measure. Contact The Wheelhouse to confirm your fit and the supplied cockpit and crank dimensions before ordering.

Availability: orderable as a complete bike, with selected size/colour availability and delivery timing confirmed by The Wheelhouse. This listing does not imply stock physically on hand at our shop or same-day dispatch.

G5-X questions, answered

Is the listed price for a complete bike?

Yes. The CAD price includes the complete SRAM RED XPLR AXS 1x13 build and Zipp 303 XPLR SW wheelset listed above. There are no separate groupset or wheelset surcharges, and this is not a frameset configurator. Applicable taxes and delivery charges are handled separately at checkout.

What is different from the G4-X?

The G5-X is a new gravel platform with revised geometry, nominal tire clearance increased from 45 mm to 53 mm, internal down-tube storage, additional cargo mounting options and a round 27.2 mm seatpost.

Which tires can I fit?

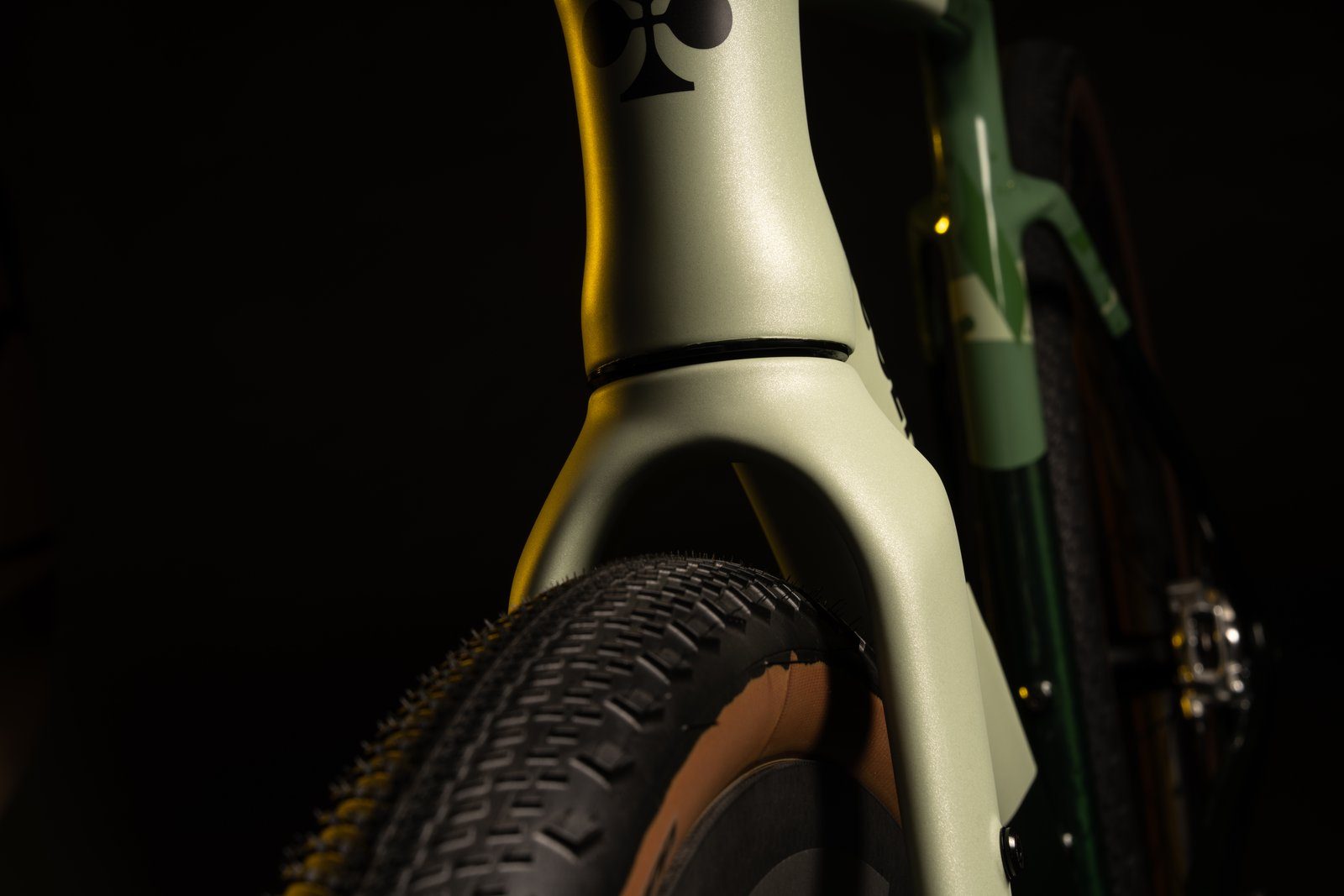

Colnago specifies a maximum nominal width of 53 mm with 6 mm clearance. Actual tire dimensions depend on the tire and rim pairing. Use a compatible tire and respect both the tire and wheel manufacturers’ pressure and clearance limits. The Zipp 303 XPLR SW is hookless and requires approved tubeless-compatible tires; check Zipp’s current tire-compatibility guidance before changing tires.

Can I choose other components or a custom size?

This listing offers the supplied complete-bike package in two colours and five standard sizes. It does not offer open-ended component substitutions or a custom frame size. We will help verify the factory setup and fit with you.

Do the photographs show the exact build?

The official Colnago photographs show the G5-X platform and both paint finishes, including the RED/Zipp display bike. That is the drivetrain and wheelset family specified for this package. The written component list defines this listing.

Talk to The Wheelhouse about G5-X fit and availability. Explore the Colnago collection.
