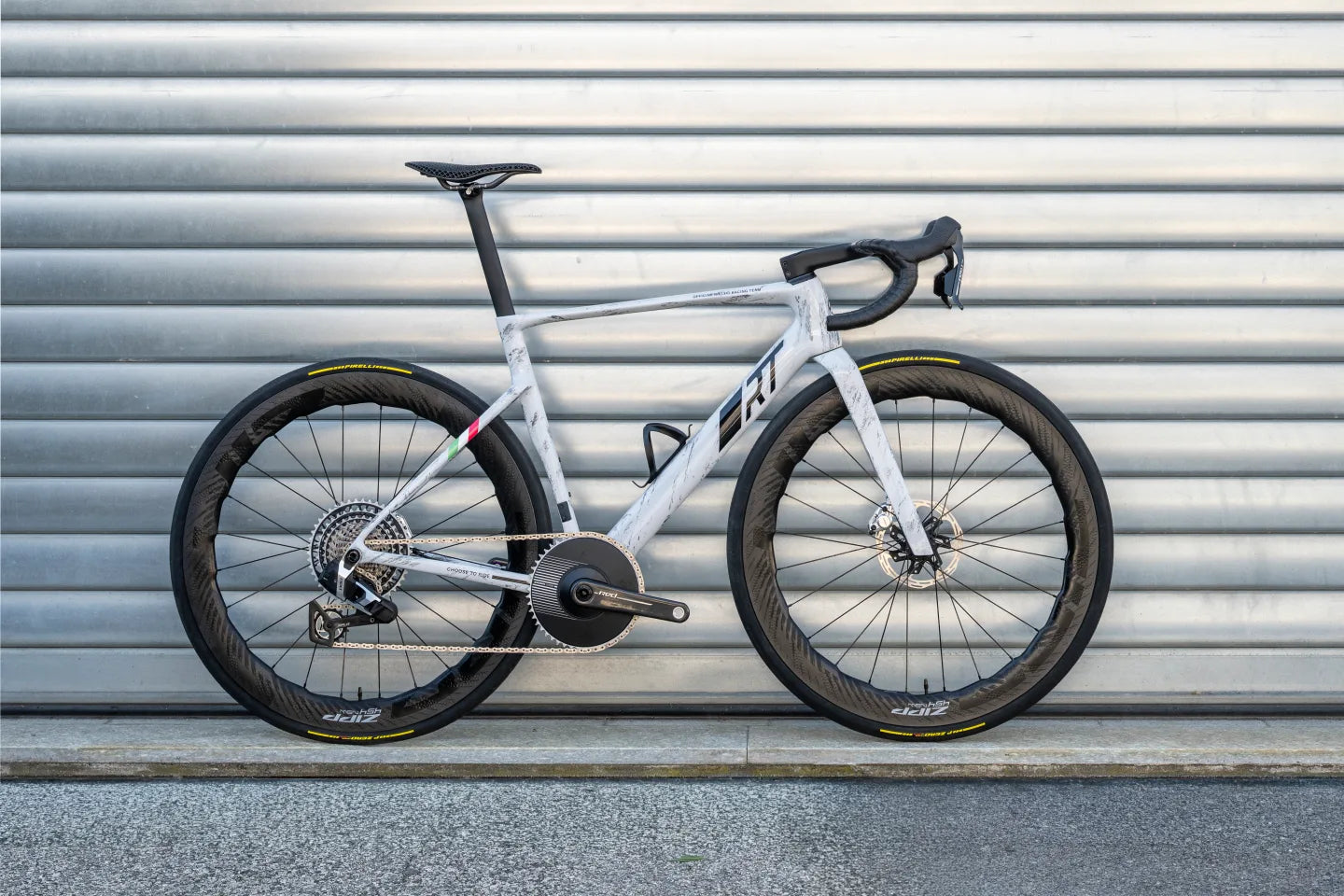

Officine Mattio Vento RT T1100 carbon race frameset — official gallery detail

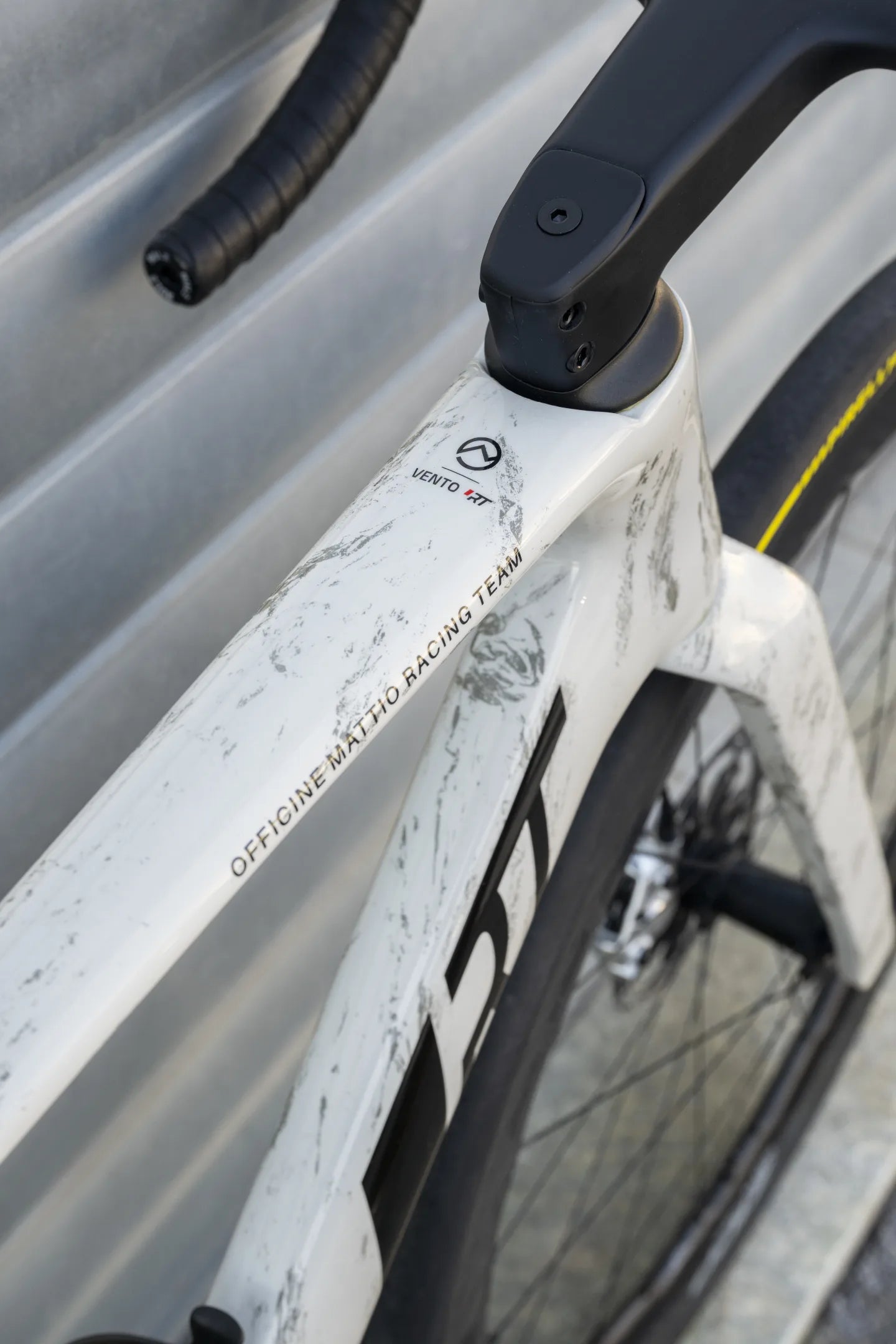

Officine Mattio Vento RT aero carbon frameset — official gallery view

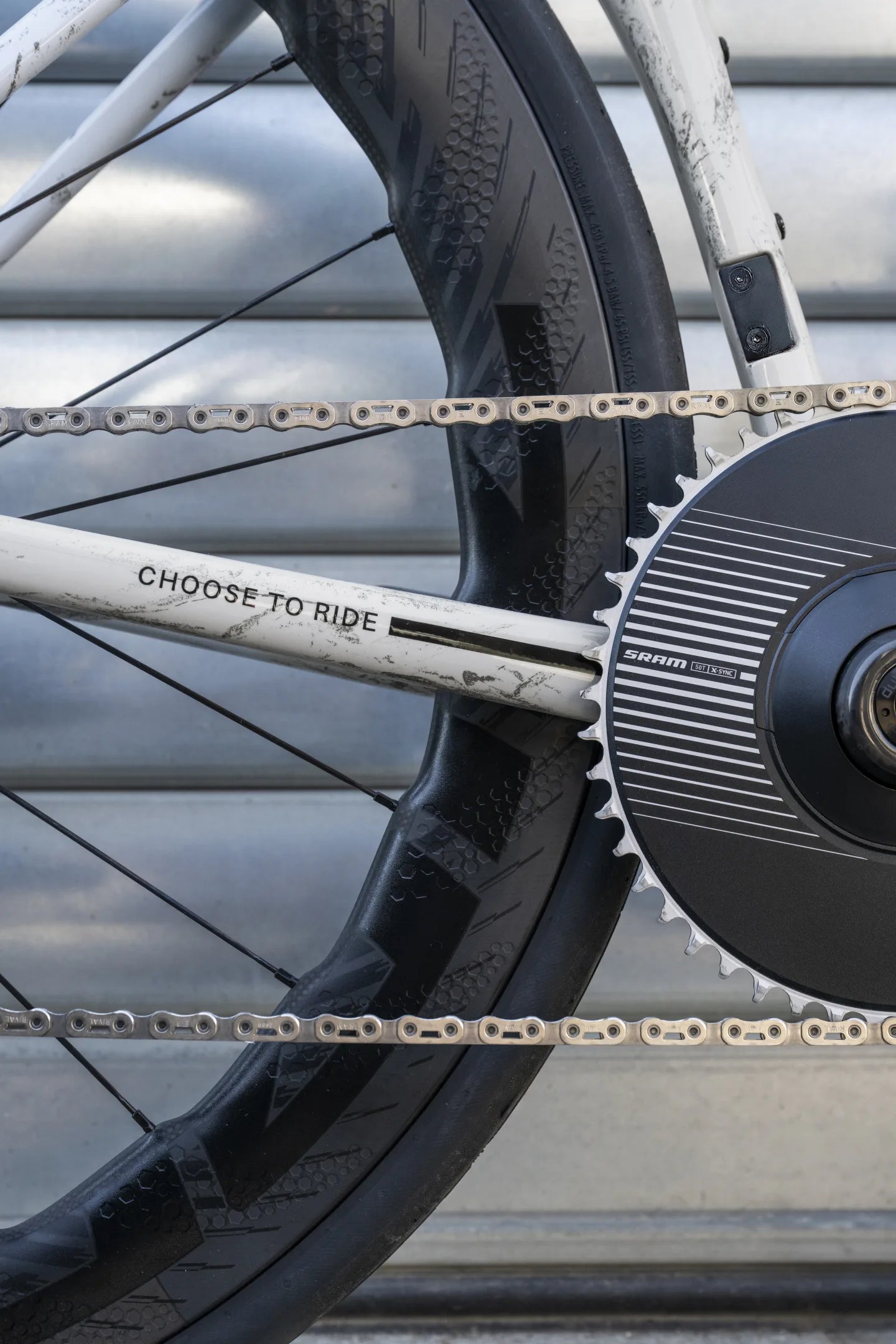

Officine Mattio Vento RT integrated cockpit and carbon frame — official gallery view

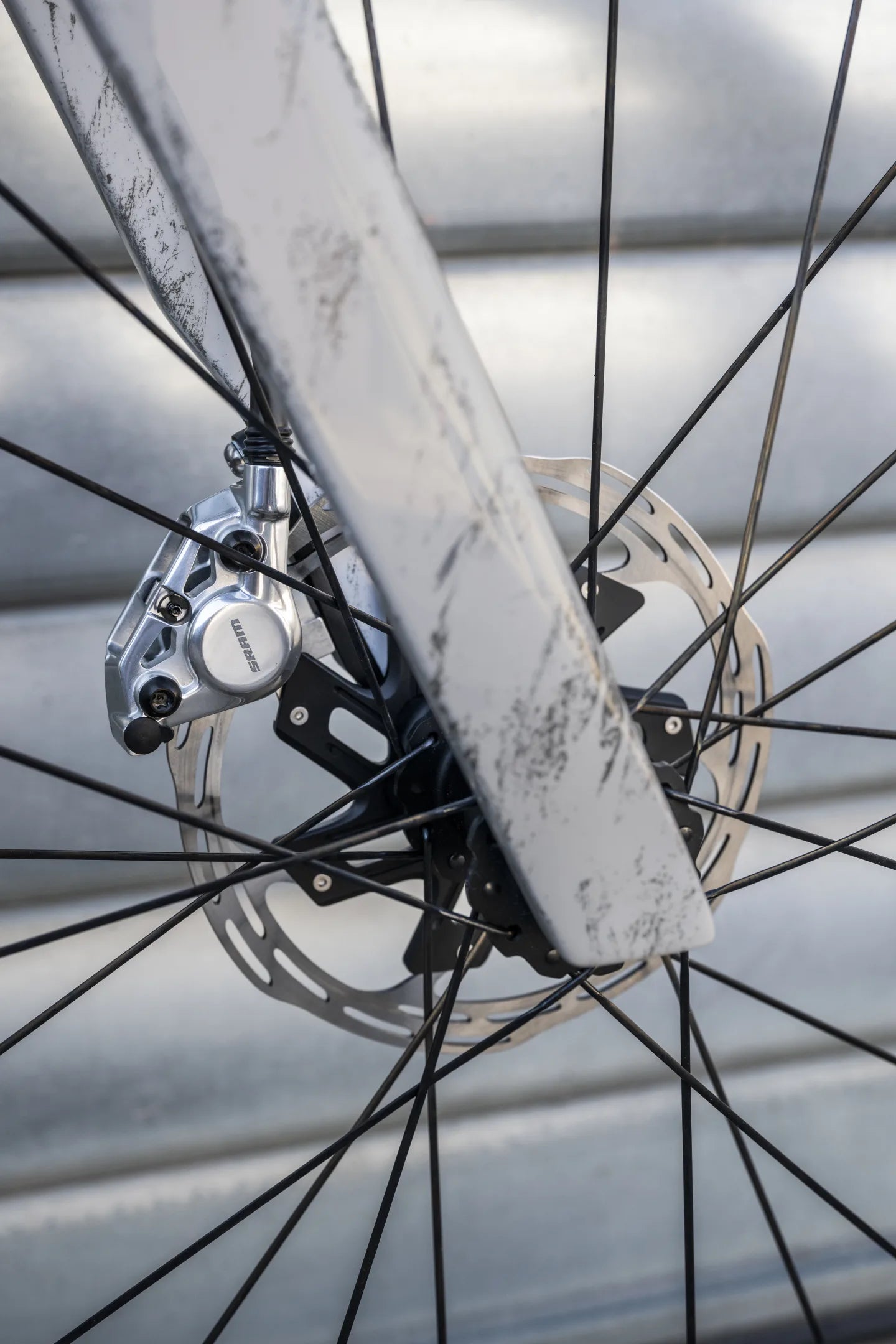

Officine Mattio Vento RT T1100 carbon road frameset — official gallery view

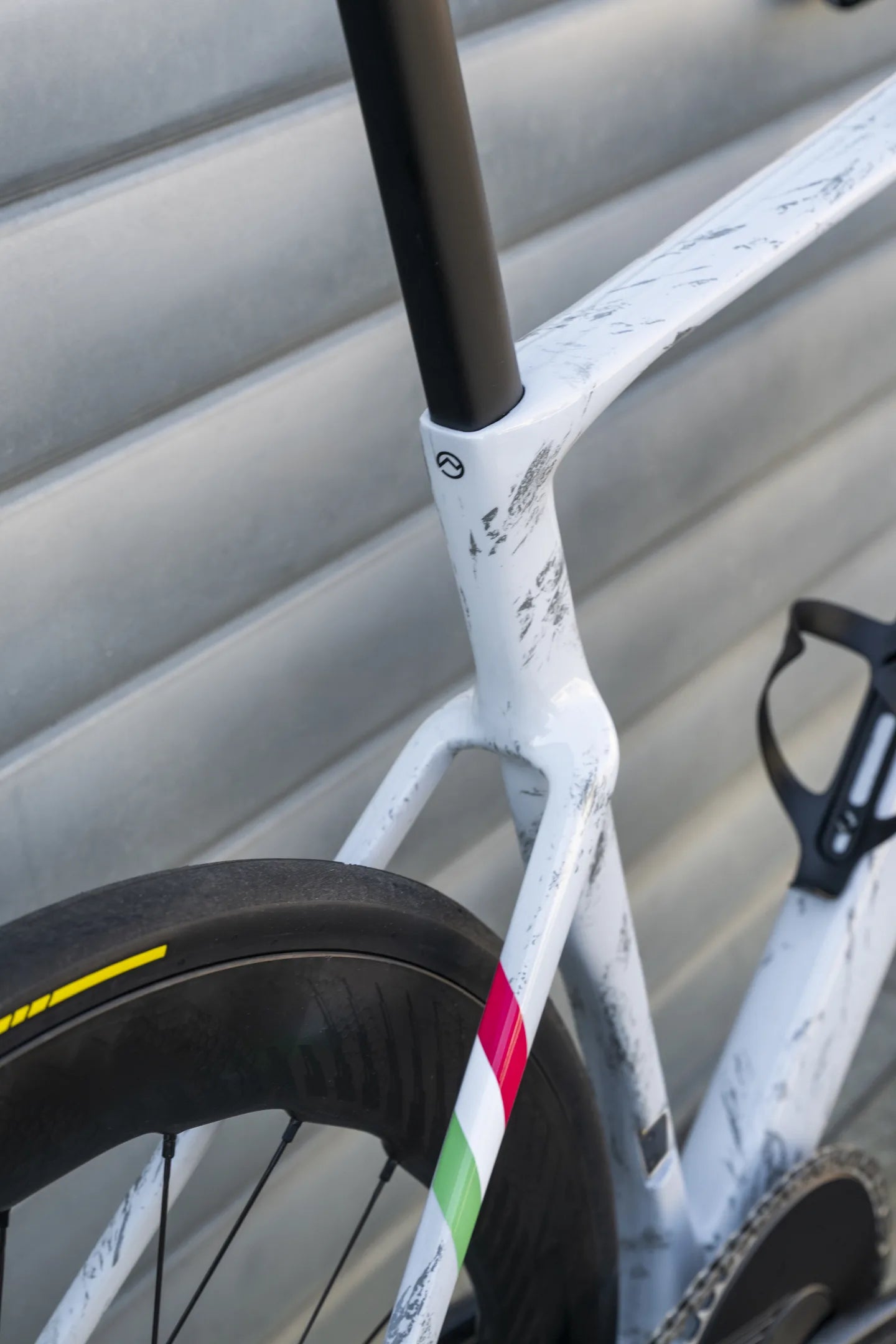

Officine Mattio Vento RT Italian carbon aero road bike — official gallery view
OFFICINE MATTIO VENTO RT — FRAMESET
Officine Mattio Vento RT T1100 carbon race frameset — official gallery detail
Officine Mattio Vento RT aero carbon frameset — official gallery view
Officine Mattio Vento RT integrated cockpit and carbon frame — official gallery view
Officine Mattio Vento RT T1100 carbon road frameset — official gallery view
Officine Mattio Vento RT Italian carbon aero road bike — official gallery view

OFFICINE MATTIO VENTO RT — FRAMESET

$10,240.00
$10,240.00
Vento RT — made-to-order Italian race frameset Vento RT is Officine Mattio’s aero race frameset: a design...
Ordered on demand
Title : Default Title
Subtotal: $10,240.00
OFFICINE MATTIO VENTO RT — FRAMESET

OFFICINE MATTIO VENTO RT — FRAMESET

$10,240.00
OFFICINE MATTIO VENTO RT — FRAMESET
Officine Mattio Vento RT T1100 carbon race frameset — official gallery detail
Officine Mattio Vento RT aero carbon frameset — official gallery view
Officine Mattio Vento RT integrated cockpit and carbon frame — official gallery view
Officine Mattio Vento RT T1100 carbon road frameset — official gallery view
Officine Mattio Vento RT Italian carbon aero road bike — official gallery view

OFFICINE MATTIO VENTO RT — FRAMESET

$10,240.00
Title : Default Title
Description
Description
x

Vento RT — made-to-order Italian race frameset

Vento RT is Officine Mattio’s aero race frameset: a design developed to convert every watt into speed without giving up lightness, response or the pleasure of a precise road bike. Its frame shape, integrated cockpit and T47 threaded bottom bracket make it a purposeful platform for fast road riding and individual, fit-led custom builds.

Frame and ride character

  • Material: T1100 carbon
  • The Officine Mattio integrated handlebar is more aerodynamic and uses a negative angle for a low, performance-oriented position. Vento RT accepts up to a 40 mm front tyre and 36 mm rear tyre; the UDH hanger also supports a 1x drivetrain.
  • Officine Mattio KPI: KOM 100 · Lightness 90 · Comfort 80 · Handling 90 · Aero 100

Configure your build with The Wheelhouse

Select a groupset and wheelset from the road-build menu, then specify the handlebar width that supports your fit. Custom Colour is available as a $500 CAD add-on; final artwork and specification are reviewed by The Wheelhouse before the order is released to Italy.

Official geometry chart

Size 48 50 52 54 56 58 60 63
Rider height (cm) 155–165 160–170 165–175 170–180 175–185 180–190 185–195 190–200
A — Horizontal top tube length (mm) 510 520 537 545 560 576 590 600
B — Seat tube length (BB centre to top of seat tube) (mm) 430 450 475 500 520 540 565 595
C — Seat tube angle (°) 75.0 75.0 74.0 74.0 73.5 73.5 72.5 72.5
D — Head tube angle (°) 71.0 71.5 72.0 72.5 73.0 73.0 73.5 73.5
E — Chainstay length (mm) 408 408 408 408 410 412 412 412
F — Fork rake (mm) 43 43 43 43 43 43 43 43
H — Wheelbase (mm) 967 971 977 985 993 1002 1010 1014
I — Trail (mm) 73 69 66 63 60 56 56 56
J — Standover at top tube midpoint (mm) 733 747 765 787 805 826 847 868
K — Bottom bracket drop (mm) 75 74 72 70 69 67 67 67
L — Front centre (mm) 570 574 583 587 593 599 607 611
M — Head tube length (mm) 98 104 112 130 146 168 187 208
N — Stack (mm) 522 528 536 553 568 587 607 627
O — Reach (mm) 366 372 382 386 391 396 400 397
HT — Fork crown height (mm) 375 375 375 375 375 375 375 375

Official Officine Mattio geometry. Use the chart as a starting point; final sizing, handlebar selection and custom geometry are confirmed with The Wheelhouse.

Ordered on demand. Start with an IDMatch bike fit in Calgary or speak with our team for remote configuration support.
